Hiển Thị Phụ eVIEW

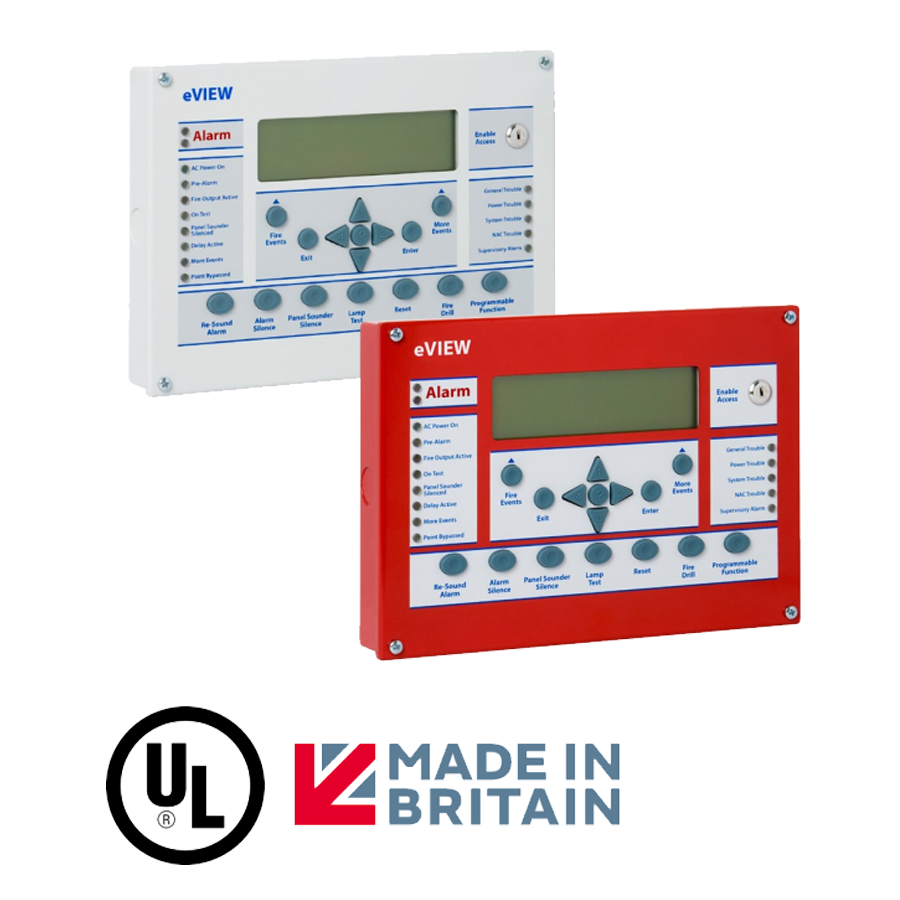

Designed and manufactured to the highest standards in a quality controlled environment the eVIEW fire alarm annunciator provides a simple and convenient method of extending the controls and indications of the Elite fire alarm control panel to other locations.
The large, graphic LCD and high brightness LED indicators duplicate the indications on the Elite fire alarm control panel at up to 15 additional locations via a simple, two-wire serial data connection.
The eVIEW is powered by 24V DC (which can be via an additional 2 conductors from the control panel or local 24V DC listed supply).
eVIEW is housed in a small enclosure which is styled similarly to the Elite control panel and is ideal for installations where a large control panel would be detrimental to decor such as entrance halls.
Up to 15 eVIEW annunciators can be connected to each control panel on the Elite network making eVIEW ideal where multiple points of indication and/or control are required, such as nurses stations or shop units.

⇓ Tải xuống Catalogue

eVIEW| Analog Addressable Serial Annunciator

Standard Features
• Available in Red or Gray
• Up to 15 annunciators can be connected to each
Elite or Elite RS fire control panel
• Large liquid crystal display (240 x 64 pixels)
• High brightness LED indications
• Internal sounder
• Replicates all panel controls (Elite)
• Simple, two-wire serial connection
• Small, Elite style enclosure
• Removable electronics for easy installation
• 24V DC powered
• Low power consumption
• Multi-language options
• Connection supervised by Elite fire control panel
• Recess mounting using optional AS1173 kit
